Formpave SC Intergrid

GeoGrid used for confining and stabilising graded sub-base aggregate

£581.25 exc. VAT £697.50 inc. VAT

Key Facts

  • Roll Length: 50m
  • Roll Width: 4m
  • Roll Weight: 48.5kg
  • Mass: 240g/m²
  • Material: Polypropylene
  • Colour: Black
  • Compliant With BS EN ISO 9001:2008
  • Confines and stabilises graded sub-base aggregate


SuDs Compliant

Easy To Install

Can Be Cut

UV Resistant



Made in UK
SKU: 2339 Categories: ,

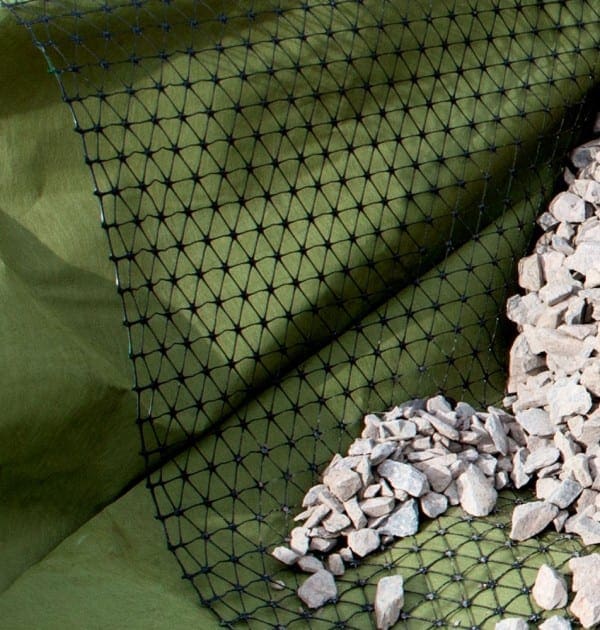

Formpave SC Intergrid is a strong, stable, SuDs compliant and easy to install ground stabilisation mesh which is installed below a layer of graded sub-base aggregate. Without, you may find there is less tensile strength resulting in unwanted lateral movement or material displacement affecting the final results. With the GeoGrid, you will have a much stronger sub-base build up with less material required and no movement or displacement which is SuDs compliant and provides you with a free draining foundation helping to reduce surface water build up and localised flooding.

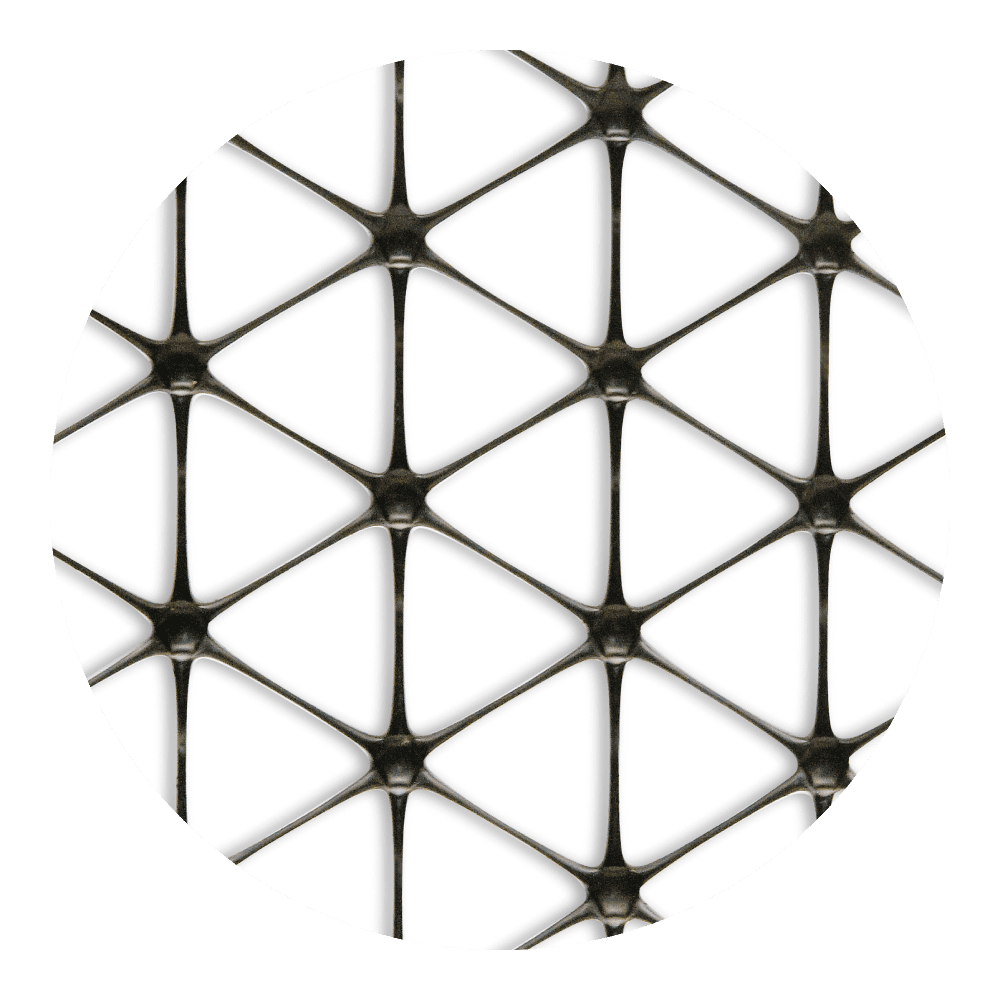

Manufactured from punched and stretched polypropylene, the unique design and structure of our GeoGrid results in a product with fantastic strength and stiffness. Tests conducted give a junction efficiency of 100% which means you can greatly reduce your aggregate layer thickness, reducing the quantity of aggregates used in your projects and reduce the volume of material excavated. These reductions will save you both time and money whilst still helping you meet your sustainability targets.

A number of tests and trials have also been conducted on the Formpave SC Intergrid to prove its performance benefits. Tests include: Traffic trials, bearing capacity, installation damage assessment and field tests which were carried out at the University of Nottingham and the Transport Research Laboratory.

For more information on our Formpave SC Intergrid you can download the GeoGrid product guide from the downloads tab or contact us to speak with a member of our helpful and knowledgeable team who can help you decide on the most suitable product for your upcoming project.

Additional information

Weight 48.5 kg
Dimensions 50000 × 4000 mm
