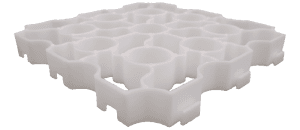

X-Grid White

X-Grid Natural

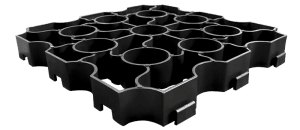

X-Grid Black

X-Grid Black

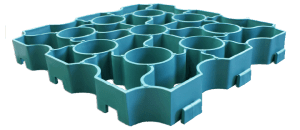

Green X-Grid

X-Grid Green

Lightweight, Yet Strong

When it comes to strength, X-Grid is possibly the strongest grid on the market relative to its weight. Weighing in at just over 5kg per square metre but capable of withstanding over 420 tonnes of compression per square metre even before being filled, it is one of the most efficient ground reinforcement grids available today.

Manufactured from a durable polypropylene which has been specially formulated to prevent it being brittle, it can cope with even the harshest of treatment and is used in a huge range of applications from 1m² to 10,000m² and from pedestrian use to HGV parking.

UK Design & Manufacture

With the current wider economic climate being uncertain, the emphasis on products which are designed and manufactured in the UK is becoming more prominent as supply issues and rising costs can start to be a problem. X-Grid is wholly designed and manufactured in the UK using recycled plastic which has also been sourced domestically, which ensures total control over production volumes and costs.

Manufactured to the highest standards and quality checked to ensure that each and every single panel of X-Grid which is dispatched is the best it can possibly be, giving our customers total peace of mind.

Technical Details

PropertyDetail
Dimensionsmm330 x 330 x 40
Wall Dimensionsmm3
Weightkg0.57
Panels/m²Panels/m²9 (Nominal m²)
Weight/m²kg/m²5.13
Country Of OriginUnited Kingdom
Material PropertiesPolypropylene [PP]
(100% recycled – UK Sourced)
Connection MethodIntegrated Quick-Snap Slot & Peg
Cell Profile (LxW)Inner
Asymmetric
85mm x 45mm
Outer
Asymmetric
102mm x 55mm
Cylindrical55mm Ø
Void Ratio% Open93
Load Bearing CapacityTonnes/m²428 (Unfilled)
Operating Temperature°C-50 to +90°C
Environmental
Compatibility
DIN 38412Environmentally Neutral
Chemical
Reactivity
Resistant to acid, leaching, alcohol, oil, petrol,
strewing salts, ammonia etc
Grid Fill MediumsNBS Sec Q23Angular Gravel up to 20mm Ø
NBS Sec Q30Grass Seeding/Turfing
Life Expectancy25 Years (10 years manufacturing
defect warranty)
Sub-Base
Requirements
In accordance with DS7533-3
Max Gradient12%
Max Vehicle Speed15mph
Max Carry LoadDIN 107230 tonne axle load
Rate Of
Installation
m²/hr/person100
CompliancesDDAPart M Compliant
Car
Parking
DIN IN ISO 124/B125
ColoursBlack/Green/Natural
