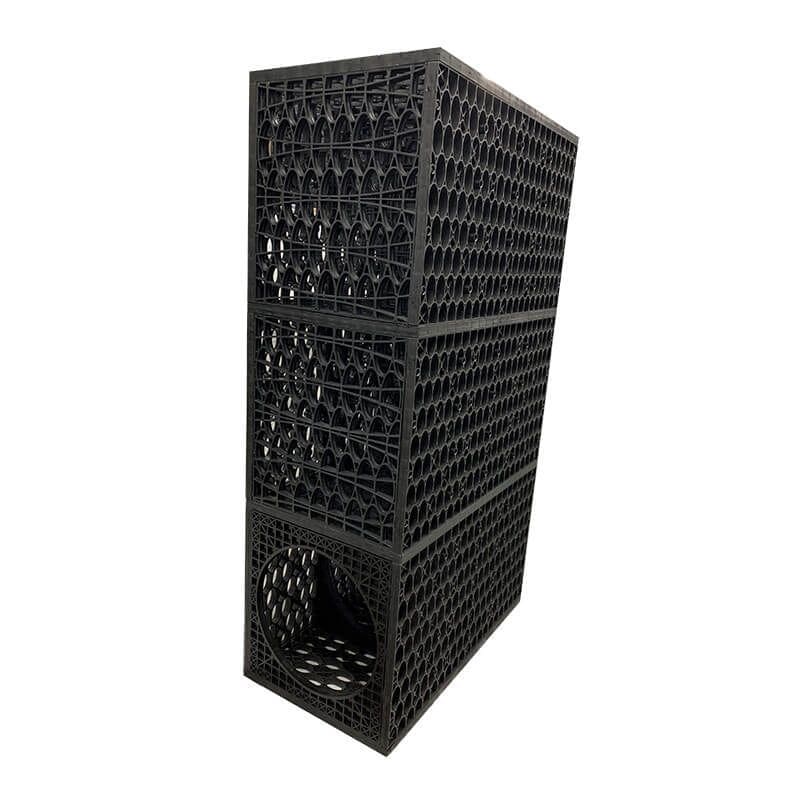

Rainsmart Ellipse Soakaway Crate Flat-Packed Triple

Recycled plastic crates for soakaways, attenuation and storm water management

£70.00 exc. VAT £84.00 inc. VAT

Key Facts
  • Length: 715mm
  • Width: 400mm
  • Depth: 1280mm
  • Capacity: Up to 348L (3 crates = 1m³)
  • Colour: Black
  • Weight: 20.7kg
  • Vertical Load Capacity: 24.2 Tonnes per m2
  • Lateral Load Capacity: 18 Tonnes per m2
  • Void Ratio: 95%
  • Material: Recycled Polypropylene
  • Knockouts On One Side Of Crate
  • Can Be Connected to 110mm Pipes


Flood Prevention

Reusable Water

Water Drainage

Domestic Use

Commercial Use
This product is expected back in stock soon

Out of stock

SKU: 2421 Categories: , ,


About Rainsmart Ellipse Inspection Channel Crate

The Ellipse Soakaway Crates are manufactured in the UK from entirely recycled plastic. The triple Rainsmart storm crates are buried beneath earth, gravel and other permeable materials in order to create void spaces with the purpose of holding rainwater or surface water run-off. The crates are situated underground and are used beneath low-intensity domestic surfaces such as small driveways or landscaped areas. The triple-stacked crates are designed for protecting, homes, gardens and commercial spaces against the effects of rain, storms and flooding.

The modular, easy to assemble crates can be stacked and stood side-by-side crates can help to protect homes and gardens against the effects of rain, storms and flooding. These crates are easy to assemble and can be stacked and stood side-by-side with more crates in order to create larger soakaway areas. It is recommended before the area around the crates has been filled, that the neighbouring crates are connected using cable ties to ensure no unwanted movement.

A rubber mallet can be used to connect the structure together.

The benefit of soakaway crates

The crate configuration can either be used as a rainwater harvesting tank or to hold water indefinitely or for attenuation purposes, whereby water is held temporarily until it can permeate through the crate and membrane and into the ground below. Each triple crate will hold up to 348 litres of water, meaning that small and large, hidden underground tanks can be created quickly and easily, without the need for mechanised lifting or specialist skills and tools.

Water storage systems are installed underground and use pipes to collect as much water as possible with a non-permeable membrane wrapped around these crates to prevent water from escaping. The collected water can  be used for a number of reasons including powering water features, used in reserve in case of droughts or watering plants.

An infiltration system are installed underground and use pipes to collect surface water and a permeable membrane is wrapped around each crate. The collected water is then slowly released into the ground below at an acceptable rate to ensure it does not overwhelm and cause surface water build up or localised flooding.

Find out more

To find out more information about the soakaway crates in our range call us on 01246 418144.

Alternatively, contact a member of our helpful and friendly customer service team by speaking to us on webchat or emailing us here.

Additional information

Weight 20.7 kg
Dimensions 715 × 400 × 1280 mm
No frequently asked questions added yet. If you have a question, feel free to contact us
No downloads added yet. If you require something specific please contact us.
