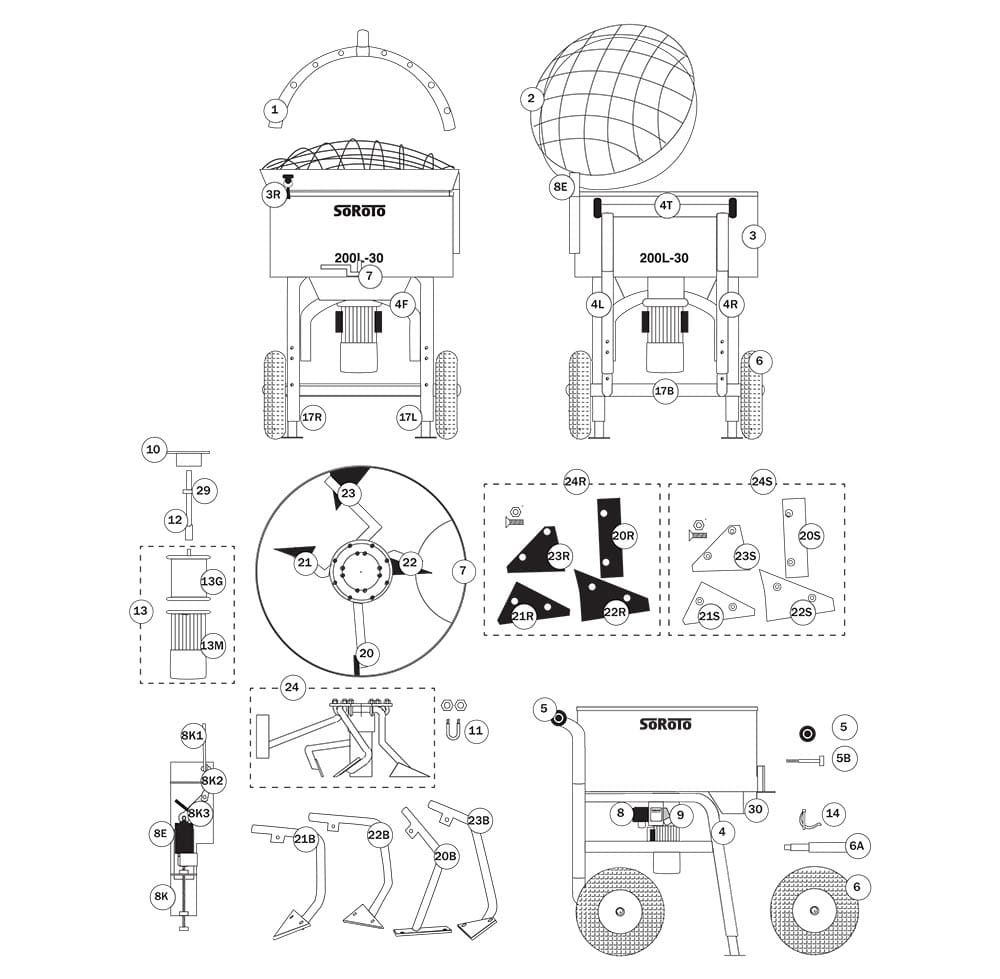

1 * | Dust Eliminator | 200.001DL |
2 | Grid Lid (hinge 100mm) | 200.002 |
3 | Mixer Drum inc Mixer Gate, Complete Set | 200.003 |
3 R | Rubber Strap - For Grid Lid | 200.003R |
4 | Frame, Complete with Wheels etc | 200.004 |
4 F | Frame, Front Part (U-Shape) | 200.004F |

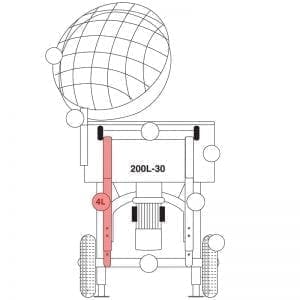

4 L | Frame, Left Side Part | 200.004L |

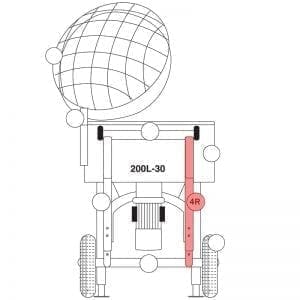

4 R | Fram, Right Side Part | 200.004R |

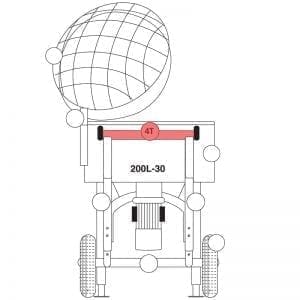

4 T | Frame, Top/Rear Part | 200.004T |

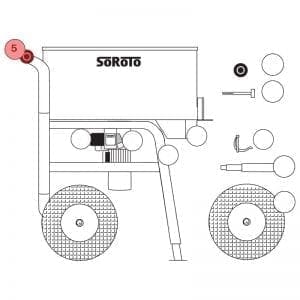

5 | Loading Wheel (1pc 80mm exc bolt) | 200.005 |

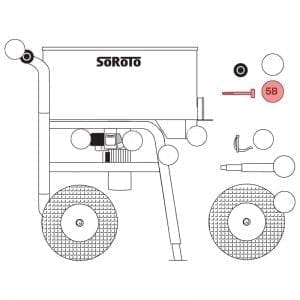

5 B | Bolt (1pc) for 80mm Loading Wheel | 200.005B |

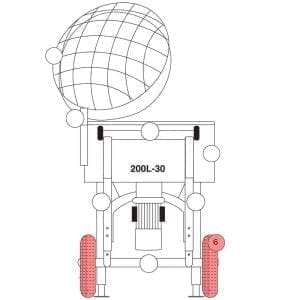

6 | Wheel (1pc) 400mm exc Bolt | 200.006 |

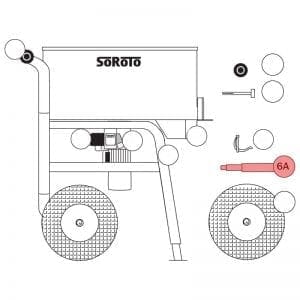

6 A | Axle (1pc) for 400mm Wheel | 200.006B |
7 | Mixer Gate inc Bolt etc | 200.007 |

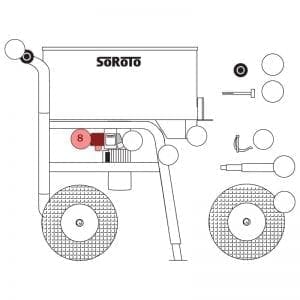

8 | Switch 9.5 Amp with Thermal Circuit Breaker & Phase Adjust | 200.008 |
8 E | Safety Switch - By the Grid Lid | 200.008E |
8 K | Cassette for Safety Switch, Complete | 200.008K |
8 K1 | Piece for Safety Switch, Bended Metal Part | 200.008K1 |
8 K2 | Piece for Safety Switch, Twisted Metal Part | 200.008K2 |
8 K3 | Piece for Safety Switch, Rubber Part | 200.008K3 |
9 | Outlet Plug 1x230v, 16amp | 200.009 |
10 | Top disc, separate (w/o U-bolts) | 200.010 |
11 | U-Bolt (1pcs) for securing the top disc (8pcs in total) inc nut | 200.011 |
12 | Drive Shaft, Complete | 200.012 |
13 | Gear Motor 2.2kW 1400/30RPM 400v | 200.013 |
13 G | - Gear Only | 200.013G |
13 M | -Motor Only | 200.013M |
14 | Strips (1pc) for axle and telescopic legs dia 55mm | 200.014 |
17 B | Telescopic Legs - Rear | 200.017B |
17 L | Telescopic Legs - Front (Left) | 200.017L |
17 R | Telescopic Legs - Front (Right) | 200.017R |
20 | Mixer arm with rubber blade, side | 200.020 |
20 B | Mixer arm without rubber blade, side | 200.020B |
21 | Mixer arm with rubber blade, mid-base | 200.021 |
21 B | Mixer arm without rubber blade, mid-base | 200.021B |
22 | Mixer arm with rubber blade, tower-base | 200.022 |
22 B | Mixer arm without rubber blade, tower-base | 200.022B |
23 | Mixer arm with rubber blade, side-base | 200.023 |
23 B | Mixer arm without rubber blade, side-base | 200.02B |
24 | Mixer arms with rubber blades, complete set inc top disc | 200.024 |
24 A | Mixer arms with rubber blades, complete set exc top disc | 200.024A |
24 B | Mixer arms without rubber blades, complete set exc top disc | 200.024B |
20 S* | Blade, Hardox steel part, Side | 200.020S |
21 S* | Blade, Hardox steel part, Mid-Base | 200.021S |
22 S* | Blade, Hardox steel part, Tower-base | 200.022S |
23 S* | Blade, Hardox steel part, Side-base | 200.023S |
24 S* | Blade, Hardox steel parts, complete set | 200.024S |
29 | Bearing for drive shaft | 200.029 |
30 | Discharge Chute (includes nuts) | 200.030 |
20 R | Blade, rubber part, side | 200.020R |
21 R | Blade, rubber part, Mid-base | 200.021R |
22 R | Blade, rubber part, Tower-base | 200.022R |
23 R | Blade, rubber part, Side-base | 200.023R |
24 R | Blade, rubber part, complete set | 200.024R |
