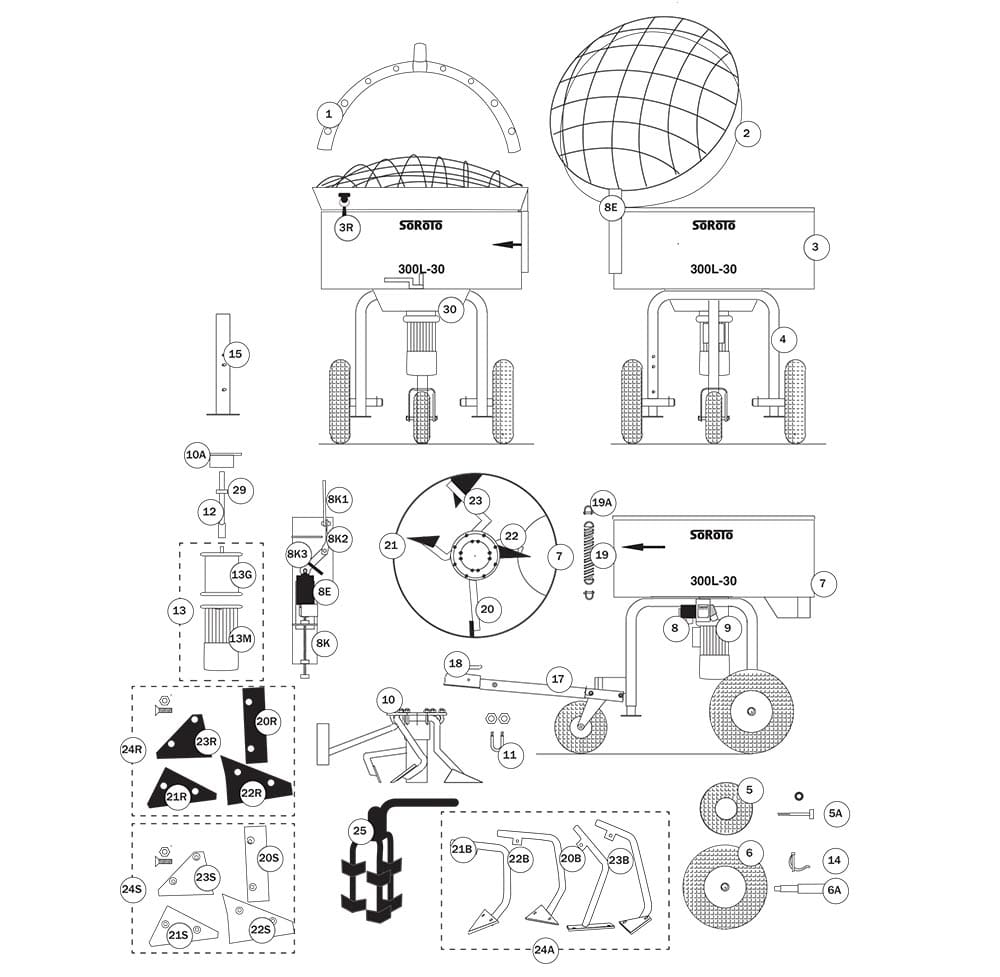

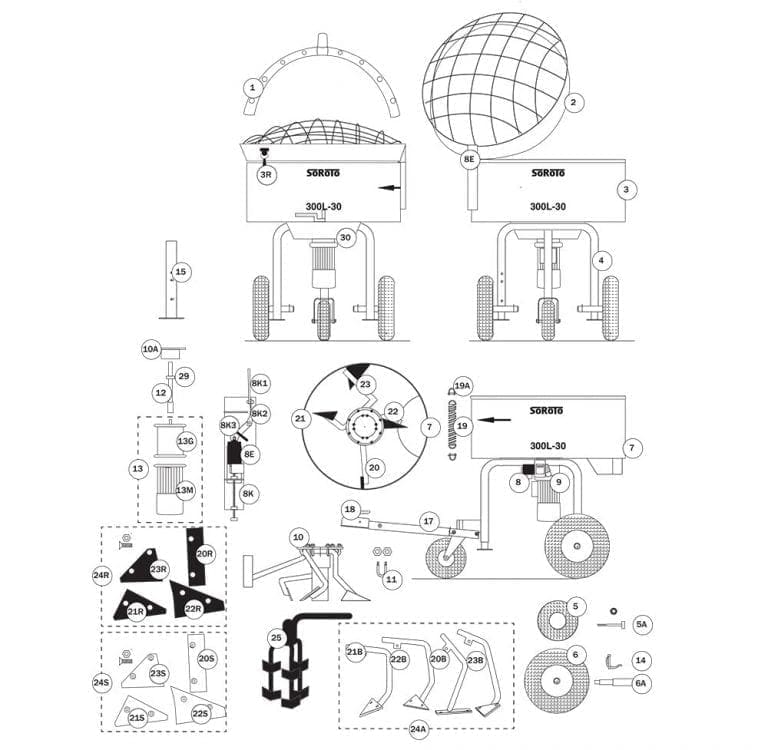

300L Spare Parts

Pos. No.DescriptionSpare Part No.
1*Dust Liminator300.001DL

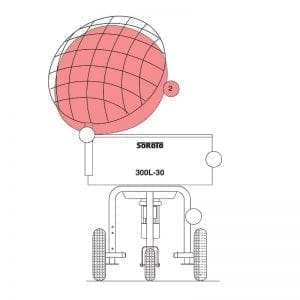

2Grid lid (hinge 100 mm).300.002
3Mixer drum incl. mixer gate, complete set300.003

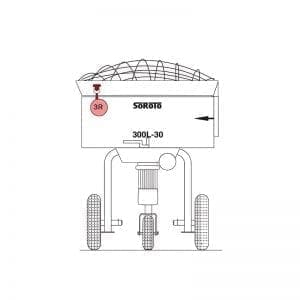

3RRubber strap - for grid lid300.003R

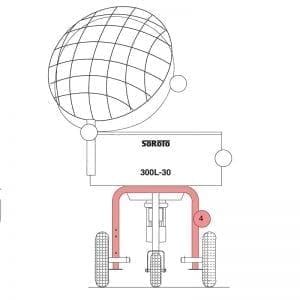

4Frame, complete w/wheels etc.300.004

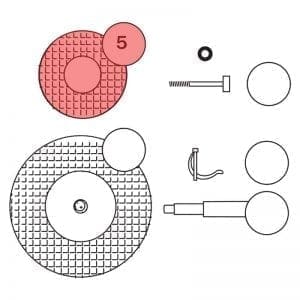

5Wheel (1 pc.), 250 mm, excl. bolt300.005
5ABolt, 10x120 mm, for 250 mm wheel, incl. nut300.005A

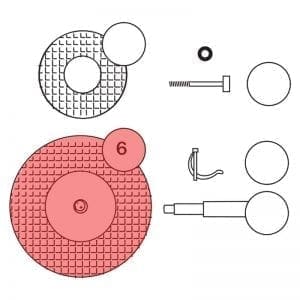

6Wheel (1 pc.), 400 mm, excl. bolt300.006

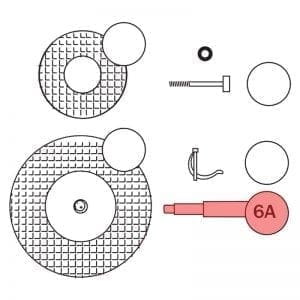

6AAxle (1 pc.) for 400 mm wheel300.006A
7Mixer gate incl. bolt etc.300.007
8Switch 9.5 Amp. w/therm. circuit breaker, phase adj. system300.008
8ESafety switch - by the grid lid300.008E
8KCassette for safety switch, complete300.008K
8K1Piece for safety switch, bended metal part300.008K1
8K2Piece for safety switch, twisted metal part300.008K2
8K3Piece for safety switch, rubber part300.008K3
9Outlet plug 1 x 230V 16 Amp300.009
10Top disc, separate (w/U-bolts)300.010
10ATop disc, separate (wo/U-bolts and nuts)300.010A
11U-bolt (1 pc.) for securing top disc (8 pcs. needed in total)300.011
12Drive shaft, complete300.012
13Gear motor 3.0 kW, 1400/30 RPM, 400V300.013
13GGear only300.013G
13MMotor only300.013M
14Strips (1 pc.) for the axle and telescopic legs, dia. ø55mm300.014
15Telescopic leg (1 pc.)300.015
17*Pole excl. globe coupling300.017
17AStud bolt for pole300.017A
18*Globe coupling incl. bolt and nut300.018
19Spring for grid lid300.019
19AD-shackle bolt for spring300.019A
20Mixer arm w/rubber blade, Side300.020
21Mixer arm w/rubber blade, Mid-base300.021
22Mixer arm w/rubber blade, Tower-base300.022
23Mixer arm w/rubber blade, Side-base300.023
24Mixer arms w/rubber blade, complete set incl. top disc300.024
24AMixer arms w/rubber blade, complete set excl. top disc300.024A
20BMixer arm wo/rubber blade, Side300.020B
21BMixer arm wo/rubber blade Mid-base300.021B
22BMixer arm wo/rubber blade, Tower-base300.022B
23BMixer arm wo/rubber blade, Side-base300.023B
20RBlade, rubber part, Side300.020R
21RBlade, rubber part, Mid-base300.021R
22RBlade, rubber part, Tower-base300.022R
23RBlade, rubber part, Side-base300.023R
24RBlades, rubber part, complete replacement set300.024R
20S*Blade, Hardox steel, Side300.020S
21S*Blade, Hardox steel, Mid-base300.021S
22S*Blade, Hardox steel, Tower-base300.022S
23S*Blade, Hardox steel, Side-base300.023S
24S*Blades, Hardox steel, complete replacement set300.024S
25*TURBO mixer arm (for mixing builder’s mortar)300.025S
29Bearing for drive shaft300.029
30Discharge chute300.030

Choose a forced action mixer model to view diagrams and spares:
