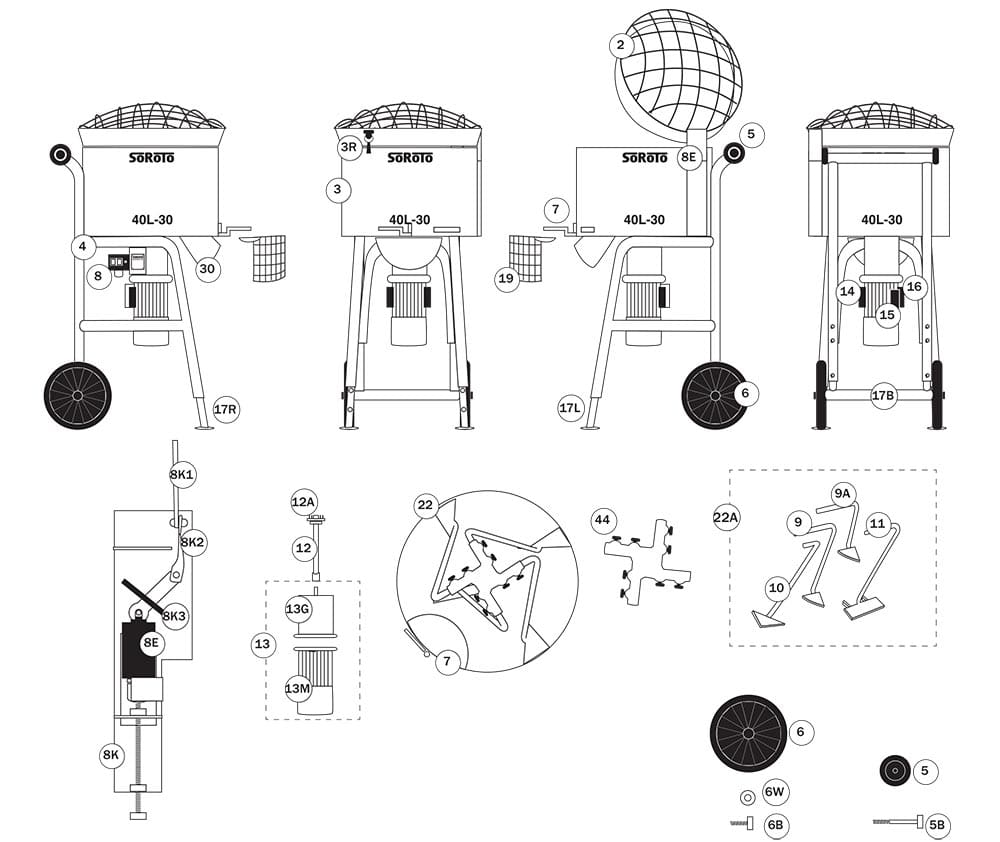

2 | Grid lid (hinge 100 mm). | 040.002 |
3 | Mixer drum incl. mixer gate, complete set | 040.003 |
3R | Rubber strap for grid lid | 040.003R |
4 | Frame, complete w/wheels etc | 040.004 |
4A | Frame, “Body” - excl. wheels and telescopic legs | 040.004A |
5 | Loading wheel (1 pc.), 80 mm, excl. bolt | 040.005 |
5B | Bolt (1 pc.) for 80 mm loading wheel | 040.005B |
6 | Wheel (1 pc.), 300 mm, excl. bolt | 040.006 |
6B | Bolt (1 pc.) for 300 mm wheel | 040.006B |
6W | Washer (1 pc.) for 300 mm wheel | 040.006W |
7 | Mixer gate incl. bolt etc | 040.007 |
8 | Switch 11 Amp. w/thermal circuit breaker | 040.008-110V |
8E | Safety switch - by the grid lid | 040.008E |
8K | Cassette for safety switch, complete | 040.008K |
8k1 | Piece for safety switch, bended metal part | 040.008K1 |
8k2 | Piece for safety switch, twisted metal part | 040.008K2 |
8k3 | Piece for safety switch, rubber part | 040.008K3 |
9 | Mixer arm (1 pc.), Side (long) | 040.009 |
9A | Mixer arm (1 pc.), Side (short) | 040.009A |
10 | Mixer arm (1 pc.), Side-base | 040.010 |
11 | Mixer arm (1 pc.), Rake | 040.011 |
12 | Drive shaft, complete | 040.012 |
12A | Spring pins, complete set of 12 incl. a jig | 040.012A |
13 | Gear motor 0.75 kW, 1400/30 RPM., 110 V | 040.013-110V |
13G | Gear only | 040.013G |
13M | Motor only | 040.013M-110V |
14 | Starting capacitor 125 µf | 040.014 |
15 | Operating capacitor 25 µf. | 040.015 |
16 | Phase capacitor 20 µf | 0040.016 |
17B | Telescopic legs, rear | 040.017B |
17L | Teleskopic leg (1 pc.), front - left side | 040.017L |
17R | Teleskopic leg (1 pc.), front - right side | 040.017R |
17SB | Bolt and nut (1 pair) for telescopic leg (1 pc.) | 040.017SB |
19 | Safety grid by the mixer gate | 040.019 |
22 | Mixer arms, 4 pcs., complete set | 040.022 |
22A | Mixer arms, 4 pcs., wo/cross joint | 040.022A |
30 | Discharge chute (incl. nuts) | 040.030 |
44 | Cross joint for mixer arms, steel | 040.044 |
