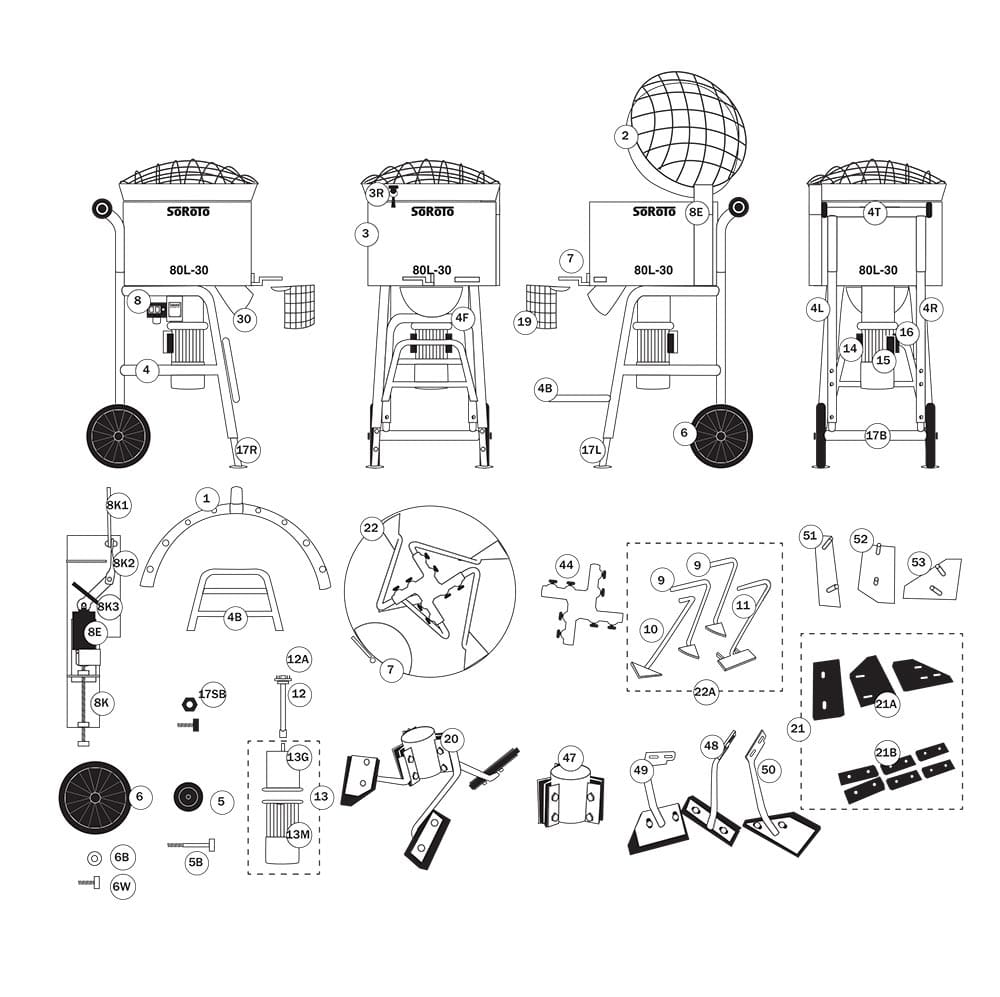

1* | Dust Liminator | 080.001DL |
2 | Grid lid (hinge 100 mm). | 080.002 |
3 | Mixer drum incl. mixer gate, complete set | 080.003 |
3R | Rubber strap - for grid lid | 080.003R |
4 | Frame, complete w/wheels etc. | 080.004 |
4B | Bucket stand | 080.004B |
4F | Frame, front part (U-shape) | 080.004F |
4L | Frame, left side part | 080.004L |
4R | Frame, right side part | 080.004R |
4T | Frame, top/rear part | 080.004T |
5 | Loading wheel (1 pc), 80 mm, excl. bolt | 080.005 |
5B | Bolt (1 pc.) for 80 mm loading wheel. | 080.005B |
6 | Wheel (1 pc.), 300 mm, excl. bolt | 080.006 |
6B | Bolt (1 pc.) for 300 mm wheel | 080.006B |
6W | Washer (1 pc.) for 300 mm wheel | 080.006W |
7 | Mixer gate incl. bolt etc. | 080.007 |
8 | Switch 16 Amp. w/thermal circuit breaker | 080.008-110V |
8E | Safety switch - by the grid lid | 080.008E |
8K | Cassette for safety switch, complete | 080.008K |
8K1 | Piece for safety switch, bended metal part | 080.008K1 |
8K2 | Piece for safety switch, twisted metal part | 080.008K2 |
8K3 | Piece for safety switch, rubber part | 080.008K3 |
9 | Mixer arm (1 pc.), Side | 080.009 |
10 | Mixer arm (1 pc.), Side-base | 080.010 |
11 | Mixer arm (1 pc.), Rake | 080.011 |
12 | Drive shaft, complete | 080.012 |
12A | Spring pins, complete set of 12 pins incl. a jig | 080.012A |
13 | Gear motor 1.1 kW, 1400/30 RPM, 110 V | 080.013-110v |
13G | Gear only | 080.013G |
13M | Motor only | 080.013M-110V |
14 | Starting capacitor 600 µf | 080.014_600 |
15 | Operating capacitor 100 µf | 080.015_100 |
16 | Phase capacitor 80 µf | 080.016_080 |
17B | Telescopic legs, rear | 080.017B |
17L | Telescopic leg, front - left side | 080.017L |
17R | Telescopic leg, front - right side | 080.017R |
17SB | Bolt and nut (1 pair) for telescopic leg (1 pc.) | 080.017SB |
19 | Safety grid - by the mixer gate | 080.019 |
20* | Mixer arms w/rubber, 3 pcs., complete set | 080.020 |
20A | Mixer arms w/rubber, 3 pcs., wo/cross joint | 080.020A |
48 | Mixer arm w/rubber, Rake | 080.048 |
49 | Mixer arm w/rubber, Side-base | 080.049 |
50 | Mixer arm w/rubber, Side | 080.050 |
21 | Rubber parts (replacement set, complete) | 080.021 |
21A | Rubber parts (replacement set, blades only) | 080.021A |
21B | Rubber parts (replacement set, cross joint only) | 080.021B |
22 | Mixer arms, set of 4 pcs., complete | 080.022 |
22A | Mixer arms, set of 4 pcs., wo/cross joint | 080.022A |
30 | Discharge chute (incl. nuts) | 080.030 |
44 | Cross joint for mixer arms, steel | 080.044 |
47 | Cross joint for mixer arms, rubber | 080.047 |
51 | Bracket for mixer blade, rubber, Rake | 080.051 |
52 | Bracket for mixer blade, rubber, Side-base | 080.052 |
23 | Bracket for mixer blade, rubber, Side | 080.053 |
