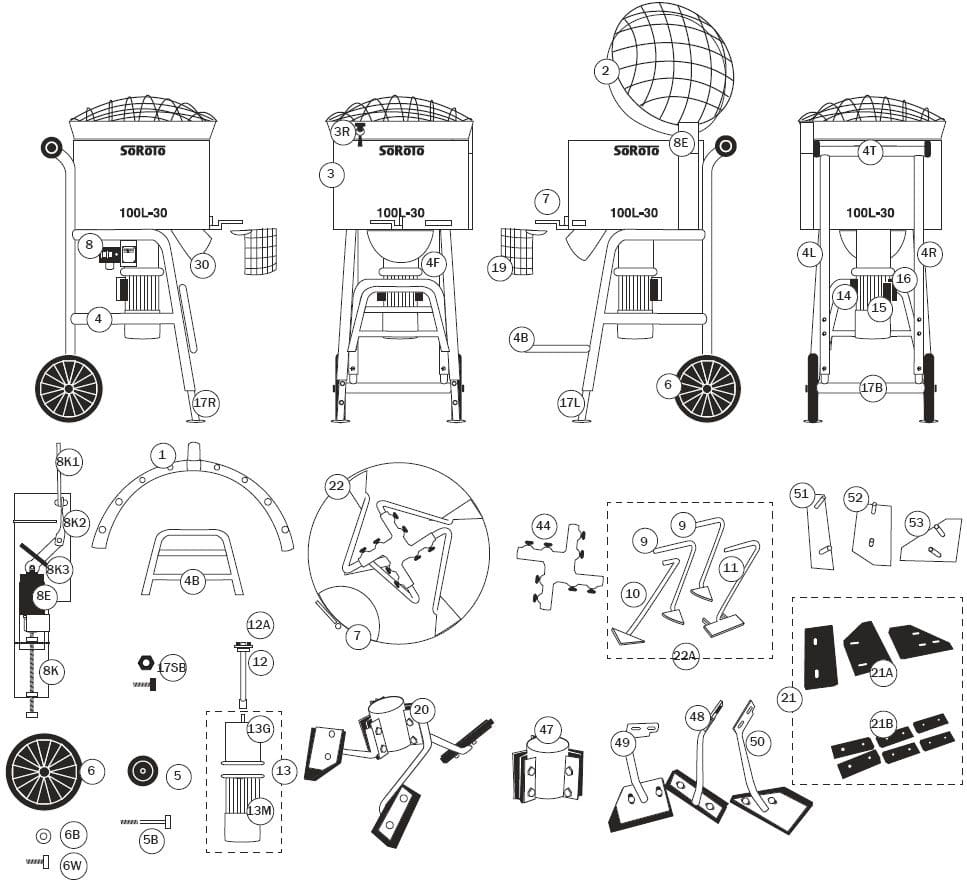

100L Spare Parts

Fig	Description	Part Number
1 *	Dust Eliminator	100.001DL
2	Grid Lid (hinge 100mm)	100.002
3	Mixer Drum inc Mixer Gate, Complete Set	100.003
3 R	Rubber Strap - For Grid Lid	100.003R
4	Frame, Complete with Wheels etc	100.004
4 B	Bucket Stand	100.004B
4 F	Frame, Front Part (U-Shape)	100.004F
4 L	Frame, Left Side Part	100.004L
4 R	Frame, Right Side Part	100.004R
4 T	Frame, Top/Rear Part	100.004T
5	Loading Wheel (1pc 80mm exc bolt)	100.005
5 B	Bolt (1pc) for 80mm Loading Wheel	100.005B
6	Wheel (1pc) 300mm exc Bolt	100.006
6 B	Bolt (1pc) for 300mm Wheel	100.006B
6 W	Washer (1pc) for 300mm Wheel	100.006W
7	Mixer Gate inc Bolt etc	100.007
8	Switch 16amp w/ Thermal Circuit Breaker	100.008-110v
8 E	Safety Switch - By the Grid Lid	100.008E
8 K	Cassette for Safety Switch, Complete	100.008K
8 K1	Piece for Safety Switch, Bended Metal Part	100.008K1
8 K2	Piece for Safety Switch, Twisted Metal Part	100.008K2
8 K3	Piece for Safety Switch, Rubber Part	100.008K3
9	Mixer Arm (1pc) Side	100.009
10	Mixer Arm (1pc) Side Base	100.010
11	Mixer Arm (1pc) Rake	100.011
12	Drive Shaft, Complete	100.012
12A	Spring Pins, Complete Set of 12 inc Jig	100.012A
13	Gear Motor 1.1kW 1400/30RPM 110v	100.013-110V
13 G	- Gear Only	100.013G
13 M	-Motor Only	100.013M-110V
14	Starting Capacitor 600u00b5f	100.014_600
15	Operating Capacitor 100u00b5f	100.015_100
16	Phase Capacitor 80u00b5f	100.016_80
17 B	Telescopic Legs - Rear	100.017B
17 L	Telescopic Legs - Front (Left)	100.017L
17 R	Telescopic Legs - Front (Right)	100.017R
17 SB	Bolt & Nut (1pair) for Telescopic Leg (1pc)	100.017SB
19	Safety Grid - By Mixer Gate	100.019
20 *	Mixer Arms with Rubber (3pcs) Complete Set	100.020
20 A	Mixer Arms with Rubber (3pcs) Without Cross Joint	100.020A
48	Mixer Arm with Rubber (Rake)	100.048
49	Mixer Arm with Rubber (Side Base)	100.049
50	Mixer Arm with Rubber (Side)	100.050
21	Rubber Parts (Replacement Set complete)	100.021
21 A	Rubber Parts (Replacement set Blades Only)	100.021A
21 B	Rubber Parts (Replacement Set - Cross Joint Only)	100.021B
22	Mixers Arms (set of 4pcs) Complete	100.022
22 A	Mixers Arms (set of 4pcs) w/o Cross Joint	100.022A
30	Discharge Chute (includes nuts)	100.030
44	Cross Joint for Mixer Arms, steel	100.044
47	Cross Joint for Mixer Arms, Rubber	100.047
51	Bracket for Mixer Blade, Rubber, Rake	100.051
52	Bracket for Mixer Blade, Rubber, Side Base	100.052
53	Bracket for Mixer Blade, Rubber, Side	100.053
